The PD1000-G2 is the ultimate solution for coating large components and mass production of cutting tools. Designed for high capacity and maximum productivity, it accommodates even the largest forming tools, extra-large cutting tools, and lengthy components. With its capabilities tailored for substantial volumes, the PD1000-G2 is your ideal choice for meeting demanding production requirements efficiently.

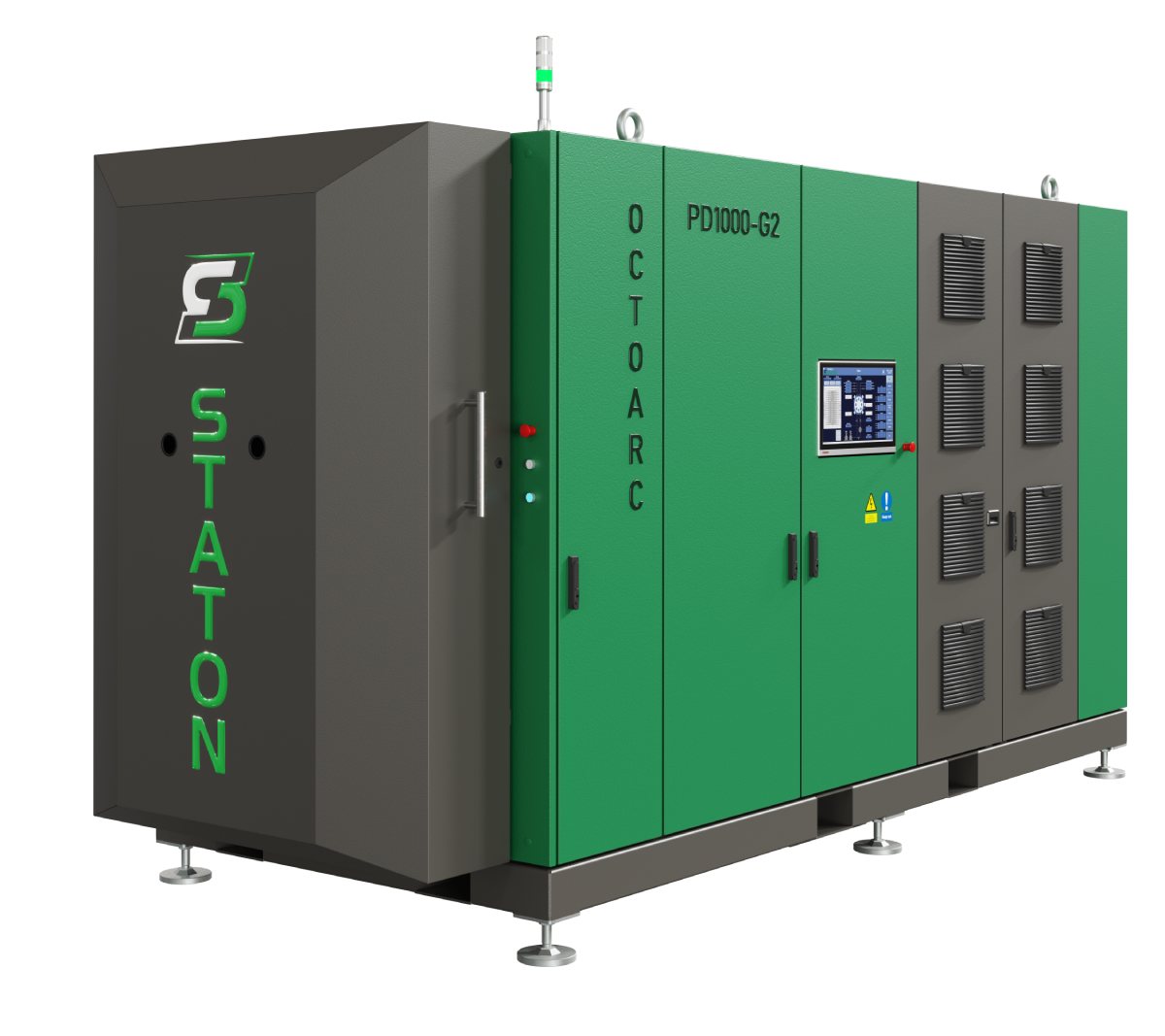

PD1000-G2
Technical data
Specification
The PD1000-G2 is the ultimate solution for coating large components and mass production of cutting tools. Designed for high capacity and maximum productivity, it accommodates even the largest forming tools, extra-large cutting tools, and lengthy components. With its capabilities tailored for substantial volumes, the PD1000-G2 is your ideal choice for meeting demanding production requirements efficiently.
| General information PD1000 | |
|---|---|

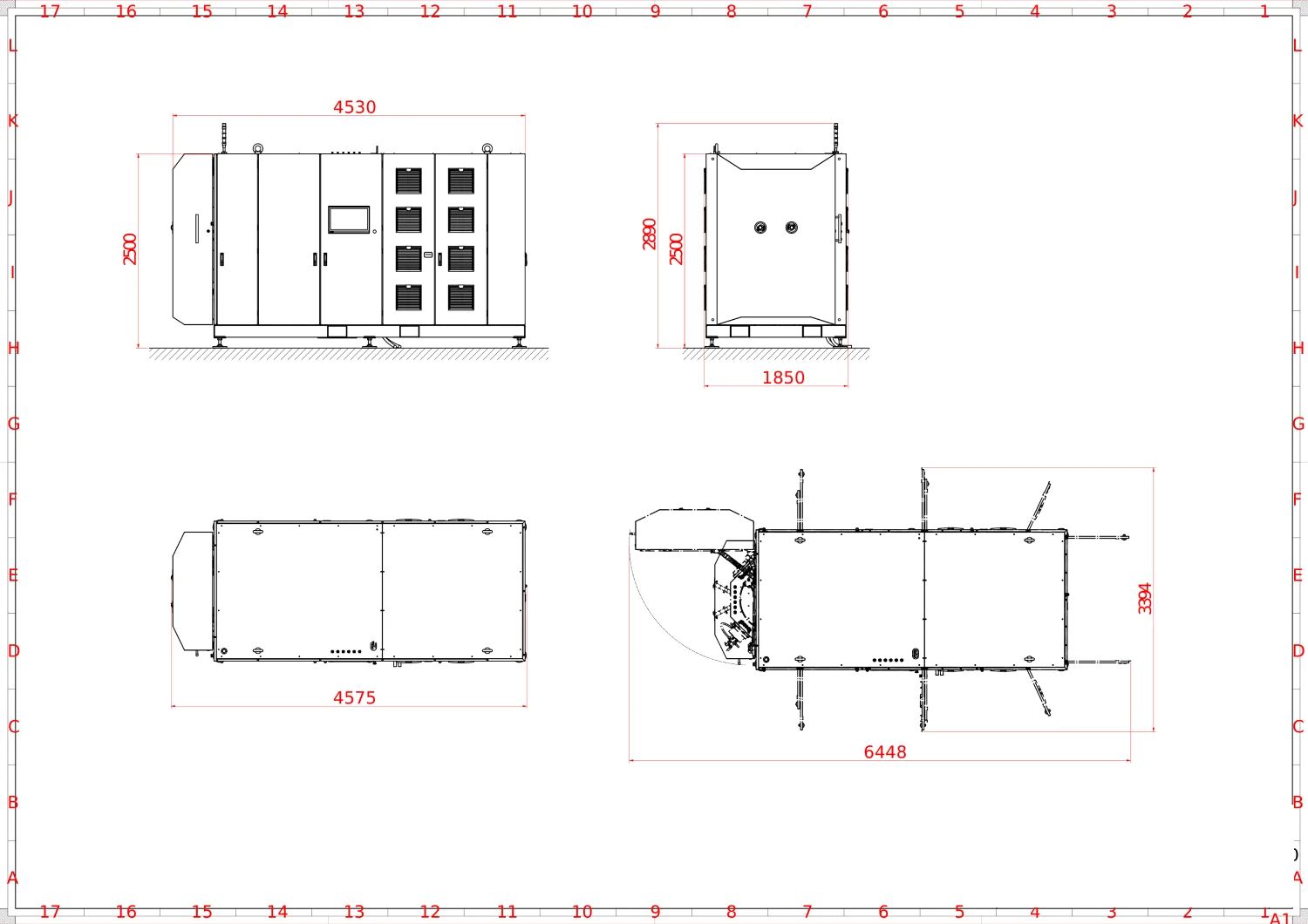

| Dimensions of equipment in mm (L x W x H) | 4530 x 1850 x 2500 |
| Active plasma volume in mm | d850 x 900 |
| Max load mass | 2000 kg |
| Max capacity: Drill D6x80 (one batch) | 2240 |
| Max capacity: Drill D12x150 (one batch) | 588 |
| Max capacity: Drill D20x200 (one batch) | 420 |
| Capacity: Inserts 15x15x5 mm (one batch) | 7140 |
| Number of batches per a day | Up to 4 |
